Modular Steel Bridge Description:

The GWD-Type bridge originated in Germany and was introduced into China for mass production through the analysis of its structure by Great Wall engineers.

The introduction of GWD-Type bridge stems from the technical barriers and deficiencies of Bailey Bridge. As is known to all, Bailey Bridge is a common prefabricated steel bridge structure, which is the upper and lower bearing bridge beam with the single pin connecting truss unit as the main beam of the bridge span structure, which has the advantages of simple structure, strong adaptability and good interchangeability. But even if the load is not large, it can only reach 60 meters per single span.

Modular Steel Bridge Specifications:

Therefore, Evercross Bridge launched the GWD-Type bridge. Although the truss adopts larger steel, the structure is simpler, which not only has the advantage of strong adaptability of prefabricated Bailey steel bridge, but also makes up for the limit of span, improves the length of single span and saves the cost of bridge pier.

Modular Steel Bridge Competitive Advantage:

Modular Steel Bridge Introduction
GW D Modular bridge is a standard bridge equipment, adopted extensively and the most popular in the world





Modular Steel Bridge Advantage

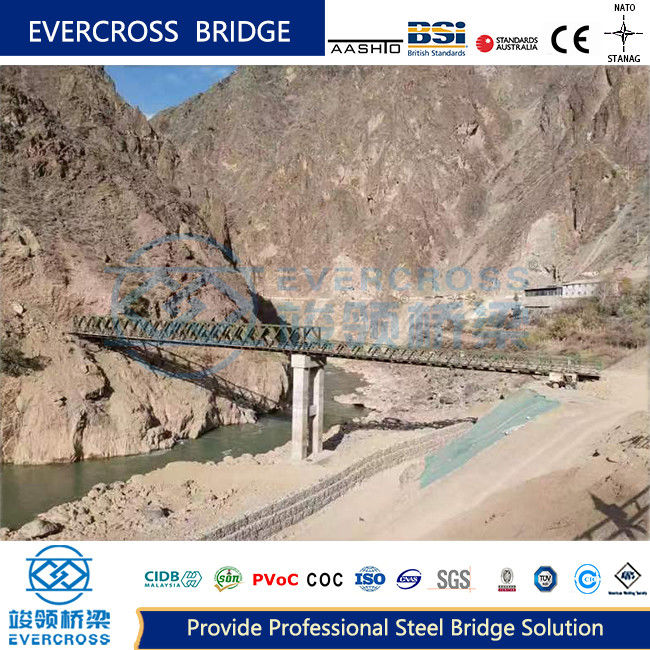

1. Lightweight and Easy to Transport

• Transport Efficiency: Modular components are lightweight relative to their strength, simplifying transportation to remote or hard-to-reach sites.
• Minimal Site Disruption: Lightweight installation reduces the need for heavy machinery or extensive site preparation, minimizing environmental impact and disruption to local communities.

2. Environmental Benefits

• Sustainability: Steel is highly recyclable, reducing waste and environmental impact. Modular construction also generates less on-site debris compared to traditional methods.
• Reduced Carbon Footprint: Factory-controlled production often involves more energy-efficient processes, and the reuse of modules further lowers resource consumption.

3. Design Versatility

• Aesthetic Options: Modular steel bridges can be designed with various finishes or architectural elements to blend with surrounding landscapes or meet aesthetic requirements.

Span Capability: Capable of spanning long distances without excessive support piers, making them suitable for rivers, valleys, or highways.

Mixture form to erect all kinds of Modular Steel Bridge

Temporary Bridges, Emergency Bridges and Fixed Bridges.
Using the bridge equipment, the suspension bridges of varied span can be erected.
The bridge has the advantages of few components, light weight and low cost.
Modular steel bridge is similar to the panel bailey bridge from their appearance. The difference is its increased truss panel height and truss panel section is larger to afford more loading. Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree.
The components are connected by connecting plates and fixed with high-strength bolts. Modualr steel bridges has all the advantages of Bailey bridge, and with a larger span and stronger load-bearing capacity.

Modular Steel Bridge Application
Temporary Structures,Permanent Infrastructure,Railway Bridges,Military Applications
