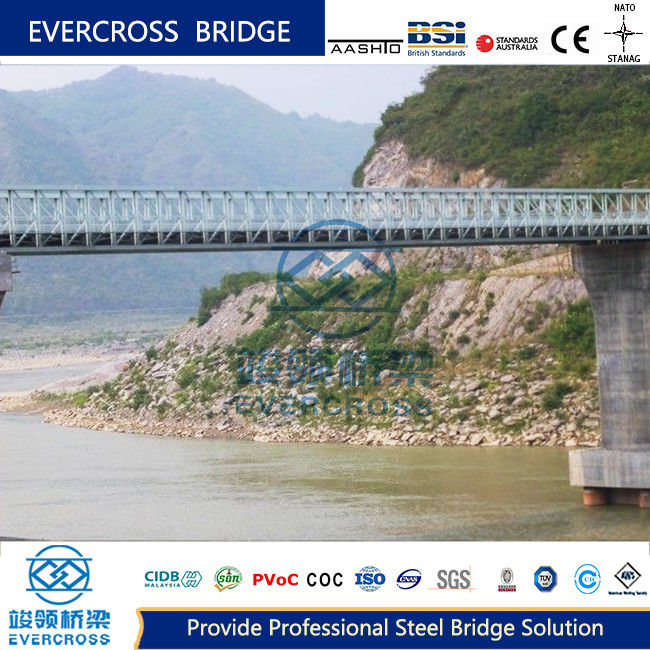

Customized Steel Pedestrian Bridge Galvanized Footbridge For Parks Walkways





Modular Steel Bridge Description:



GW D Modular bridge are new kinds of assembly steel bridges, comprising longitudinal trusses that are formed of steel beam chords and pre-fabricated modular steel panel webs, connected end to end with transverse cross girders spanning between them that support a two lane or a single lane, steel deck roadway or concrete roadway.
The surface protection can be paint or hot-dip galvanized.





Modular Steel Bridge Specifications:



Specifications:
Single lane	Standard roadway: 4.2m	Single span: 35m-91m
Double lane	Standard roadway:7.35m	Single span: 35m-91m
Load: design according to different requirements
Deck: steel deck / concrete deck





Modular Steel Bridge Competitive Advantage:



Heavy loading capacity	Used as permanent bridge
Great stability	Simple in structure
Long service life	Rapid in erection







Modular Steel Bridge Introduction

GW D Modular bridge is a standard bridge equipment, adopted extensively and the most popular in the world and known for its strength, durability, and reliability, is the primary material used in the construction of modular footbridges. The steel trusses provide the structural integrity and load-bearing capacity necessary to support the weight of pedestrians, cyclists, and other loads. The steel components are often treated with protective coatings or galvanized to enhance corrosion resistance and extend the lifespan of the bridge.





Steel modular footbridges can be equipped with additional features to improve functionality and safety.








Modular Steel Bridge Advantage

Possessing the features of simple structure,
Convenient transport, speedy erection,
Easy disassembling,
Heavy loading capacity,
Great stability and long fatigue life,
Being capable of an alternative span, loading capacity


Modular Steel Bridge Features

1. High strength and big stiffness, relative to the concrete bridge can be reduced trabecular high and self-respect
2. Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption
3. GW D Modular bridge generally prefabricated in factory, site assembled by pins and bolts; the construction period is short, processing convenient and not affected by seasonal effect.
4. GW D Modular bridge is suitable for industrialized manufacture and very convenient to transport.
5. GW D Modular bridge is easy to repair and replace, long lifetime, material can be recycled.


Modular Steel Bridge Application

Beam bridge, arch bridge, rigid frame bridge, cable-stayed bridge, suspension bridge. passenger foot-bridge


Mixture form to erect all kinds of Modular Steel Bridge

Temporary Bridges, Emergency Bridges and Fixed Bridges.
Using the bridge equipment, the suspension bridges of varied span can be erected.
The bridge has the advantages of few components, light weight and low cost.
Modular steel bridge is similar to the panel bailey bridge from their appearance. The difference is its increased truss panel height and truss panel section is larger to afford more loading. Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree.
The components are connected by connecting plates and fixed with high-strength bolts. Modualr steel bridges has all the advantages of Bailey bridge, and with a larger span and stronger load-bearing capacity.



Evercross Steel Bridges Overview :



EVERCROSS STEEL BRIDGE SPECIFICATION
EVERCROSS STEEL BRIDGE	Bailey bridge(Compact-200, Compact-100, LSB, PB100, China-321,BSB) Modular bridge( GWD, Delta, 450-type,etc), Truss Bridge,Warren bridge, Arch bridge, Plate bridge,Beam bridge,Box girder bridge, Suspension bridge,Cable-stayed bridge, Floating bridge,etc
DESIGN SPANS	10M TO 300M Single span
CARRIAGE WAY	SINGLE LANE, DOUBLE LANES,MULTILANE,WALKWAY,ETC
LOADING CAPACITY	AASHTO HL93.HS15-44,HS20-44,HS25-44, BS5400 HA+20HB,HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110. Truck-60T,Trailer-80/100Ton,etc
STEEL GRADE	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C,etc
CERTIFICATES	ISO9001, ISO14001,ISO45001,EN1090,CIDB,COC,PVOC,SONCAP,etc
WELDING	AWS D1.1/AWS D1.5 AS/NZS 1554 or equivalent
BOLTS	ISO898,AS/NZS1252,BS3692 or equivalent
GALVANIZATION CODE	ISO1461 AS/NZS 4680 ASTM-A123, BS1706 or equivalent
